Kohler Archer 60 x 30 Heated Air Bath and Whirlpool, Left Drain | K-1947-XGHLA

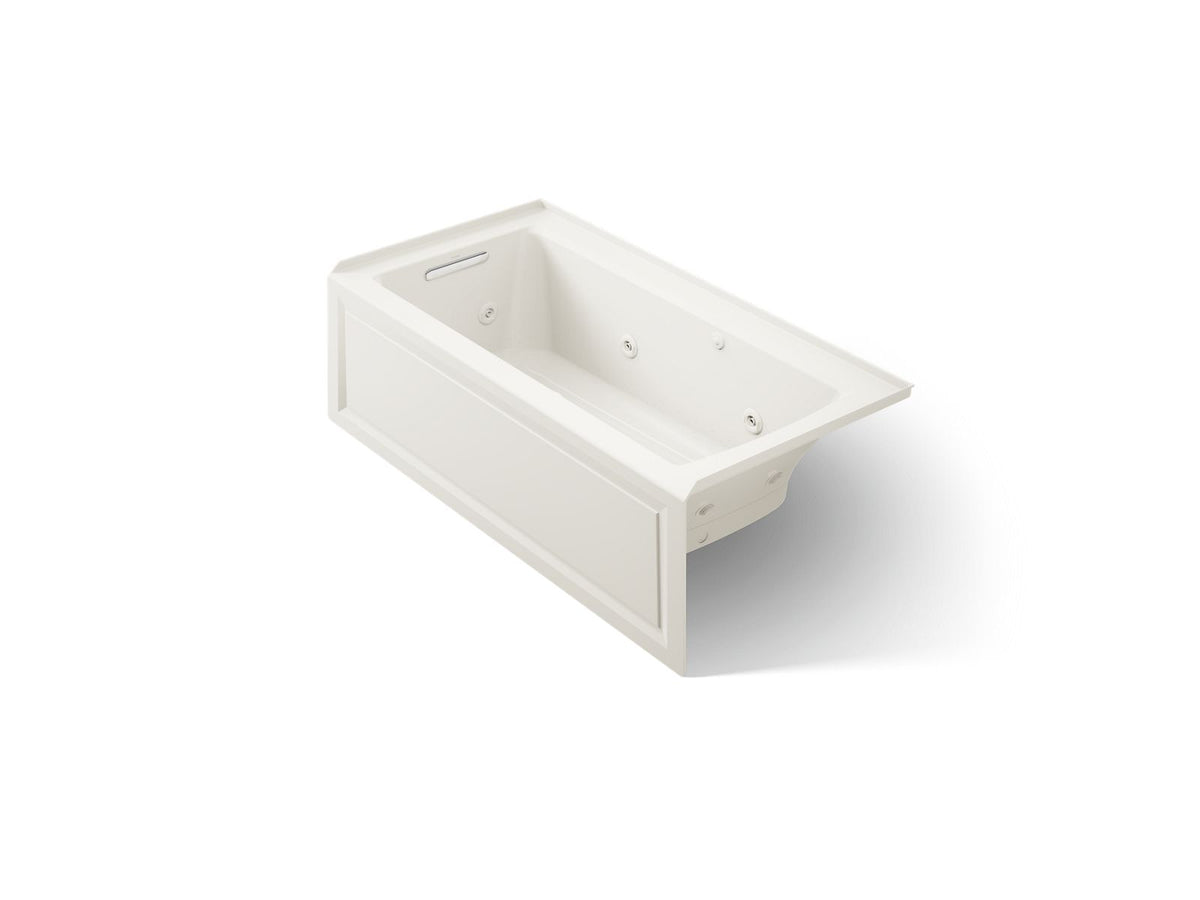

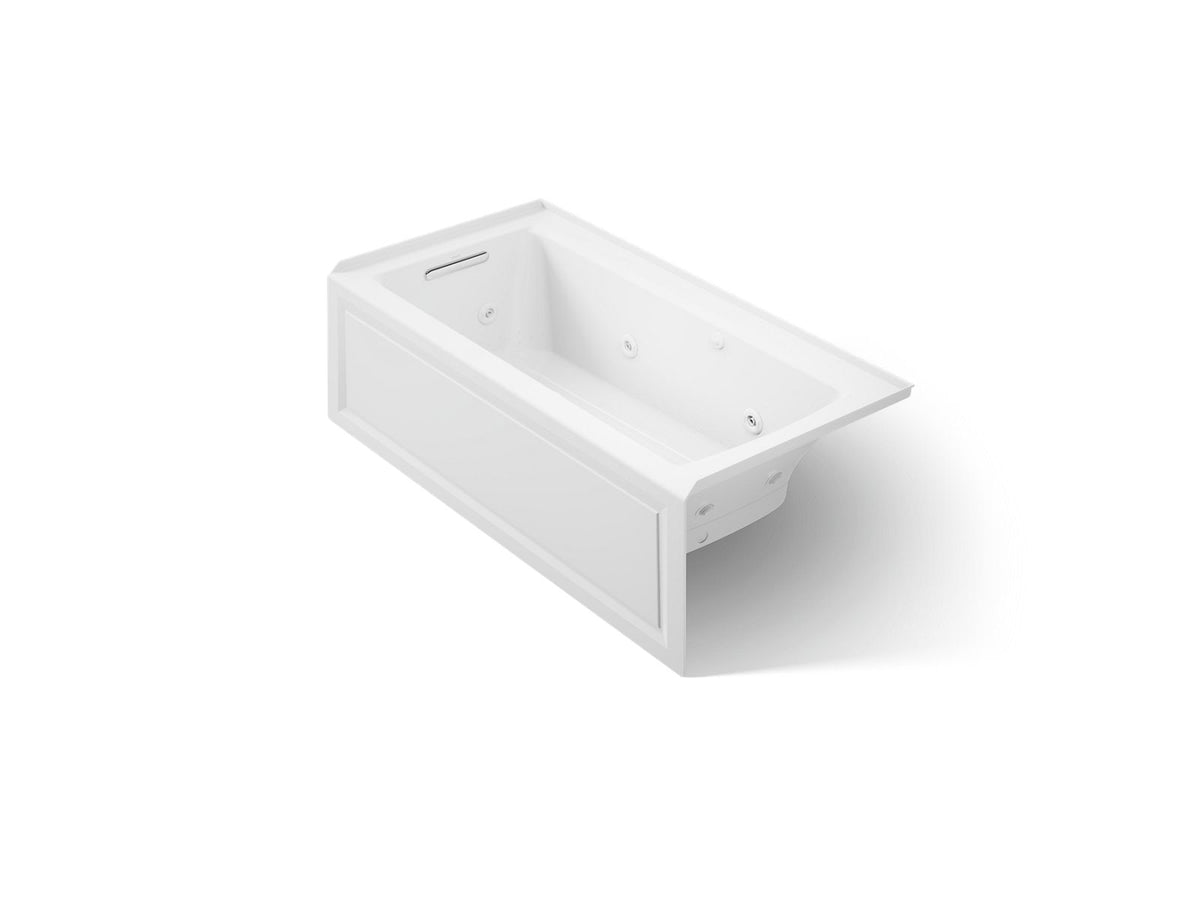

This 60 x 30-inch acrylic Archer alcove bath combines 118 heated airjets with eight adjustable whirlpool jets. It has a left drain, integral apron and flange, lumbar support, textured bottom, purge cycles and 18 blower levels.

Remote blower installation is required, and the relocation kit is included, as stated in the product page and specification installation section. Requires a Clearflo slotted overflow bath drain, K-7271 or K-7272, sold separately. Provide at least 20 x 15 inches of pump access and separate blower service access.

Requires three dedicated 120 V, 15 A, 60 Hz circuits with Class A GFCI protection. Do not alter the PVC tee or coiled flexible tubing; follow the blower relocation instructions exactly. Measure the actual bath for rough-in and provide hot-water supply capacity of at least 70% of bath capacity.

Special order: Confirm supplier availability and lead time with our showroom at 714-833-5375. Available to order does not confirm warehouse stock.

Official Kohler English specification sheet
