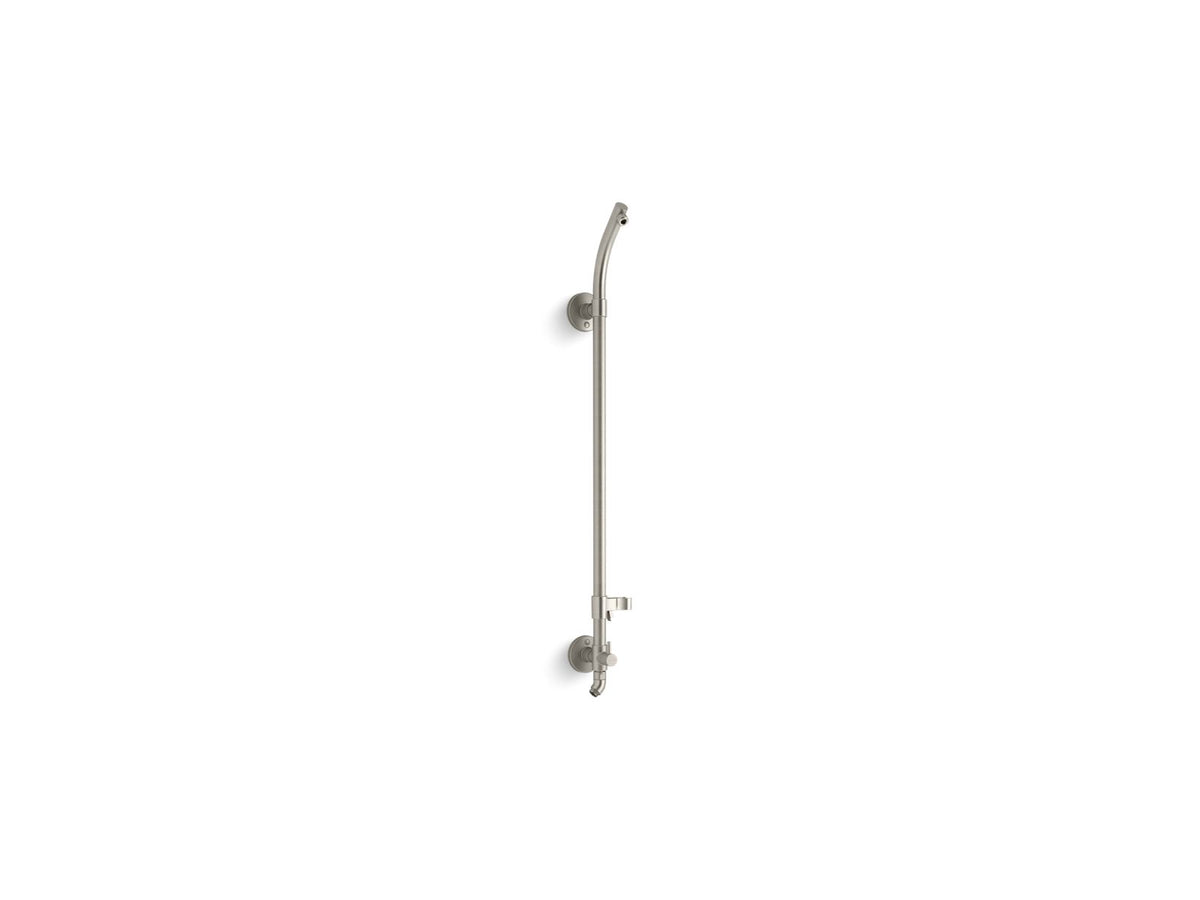

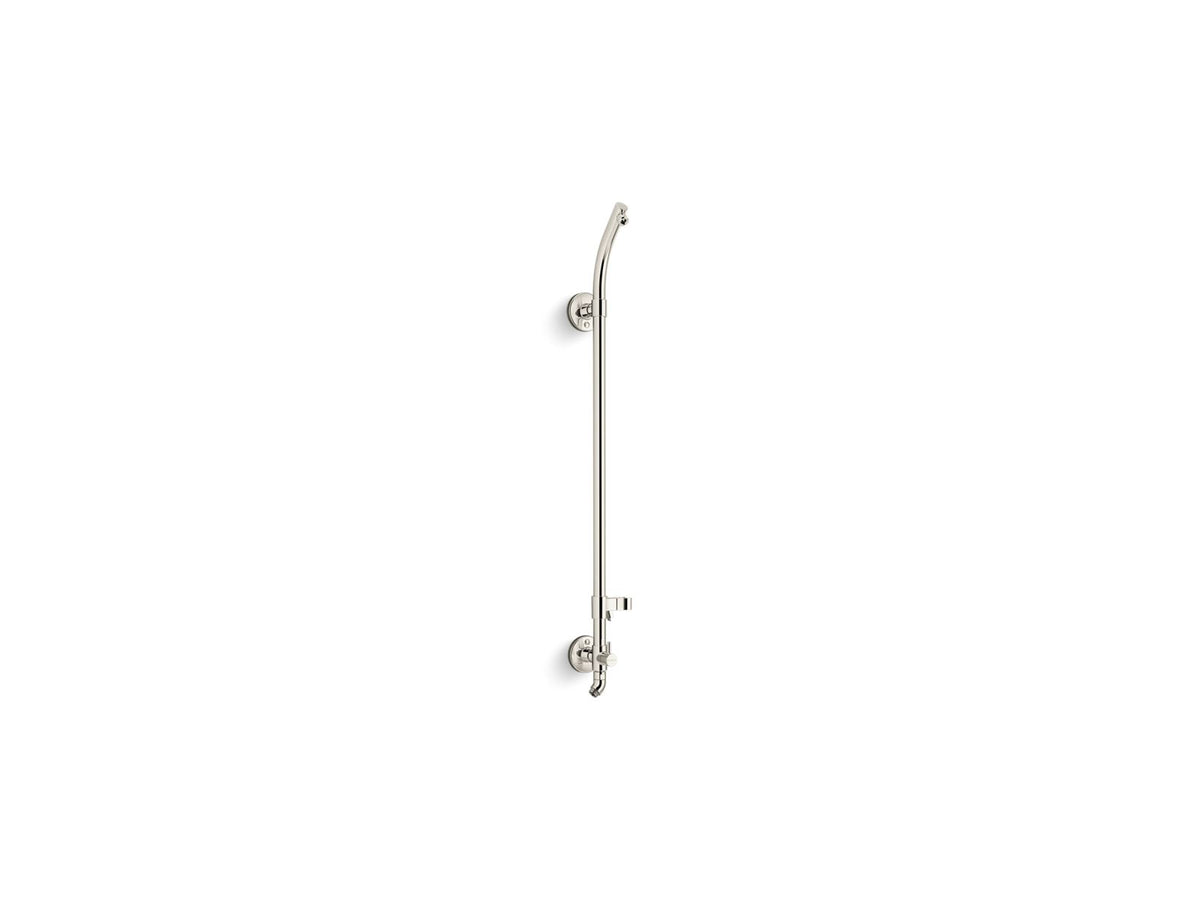

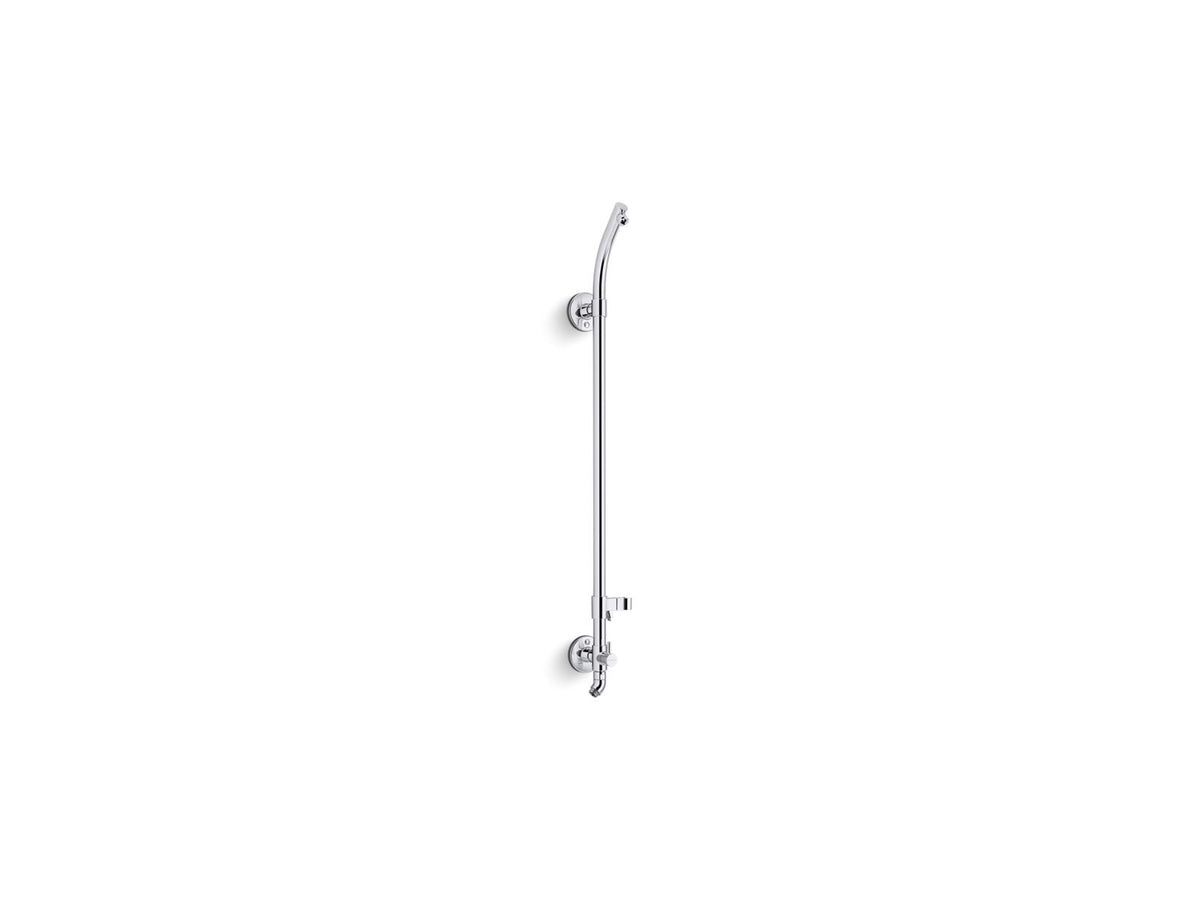

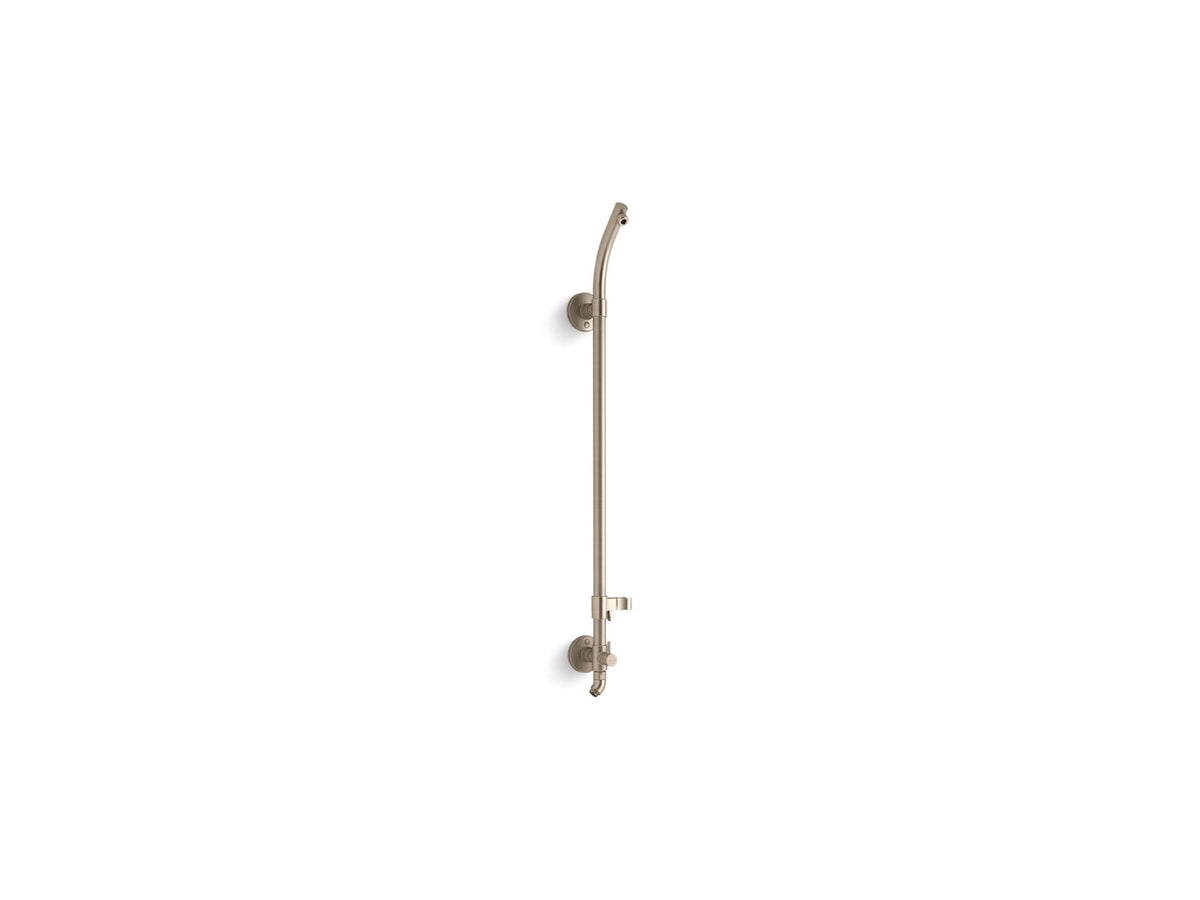

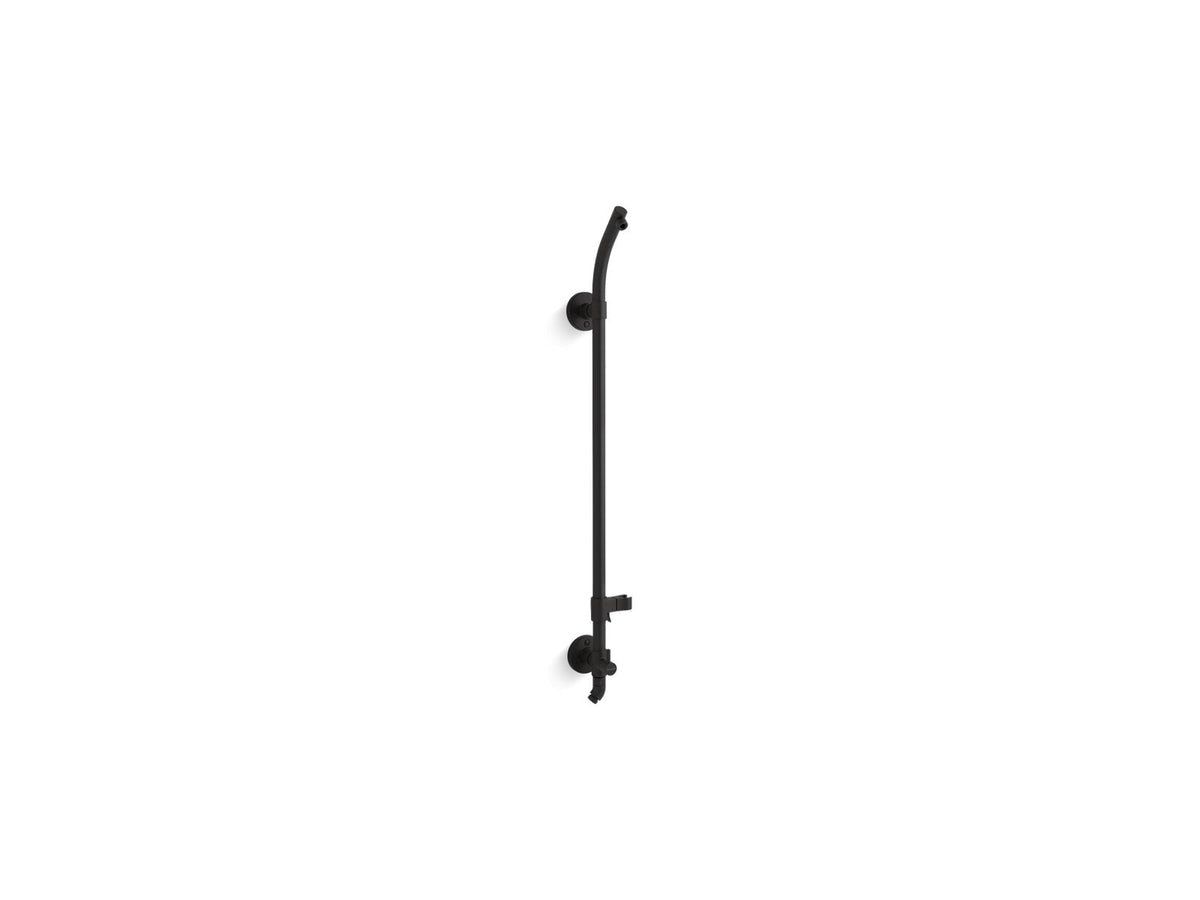

Metal wall-mount column with an adjustable handshower bracket and a diverter at the base to switch between a showerhead and handshower. Designed for new installations or retrofit replacement of an existing shower arm.

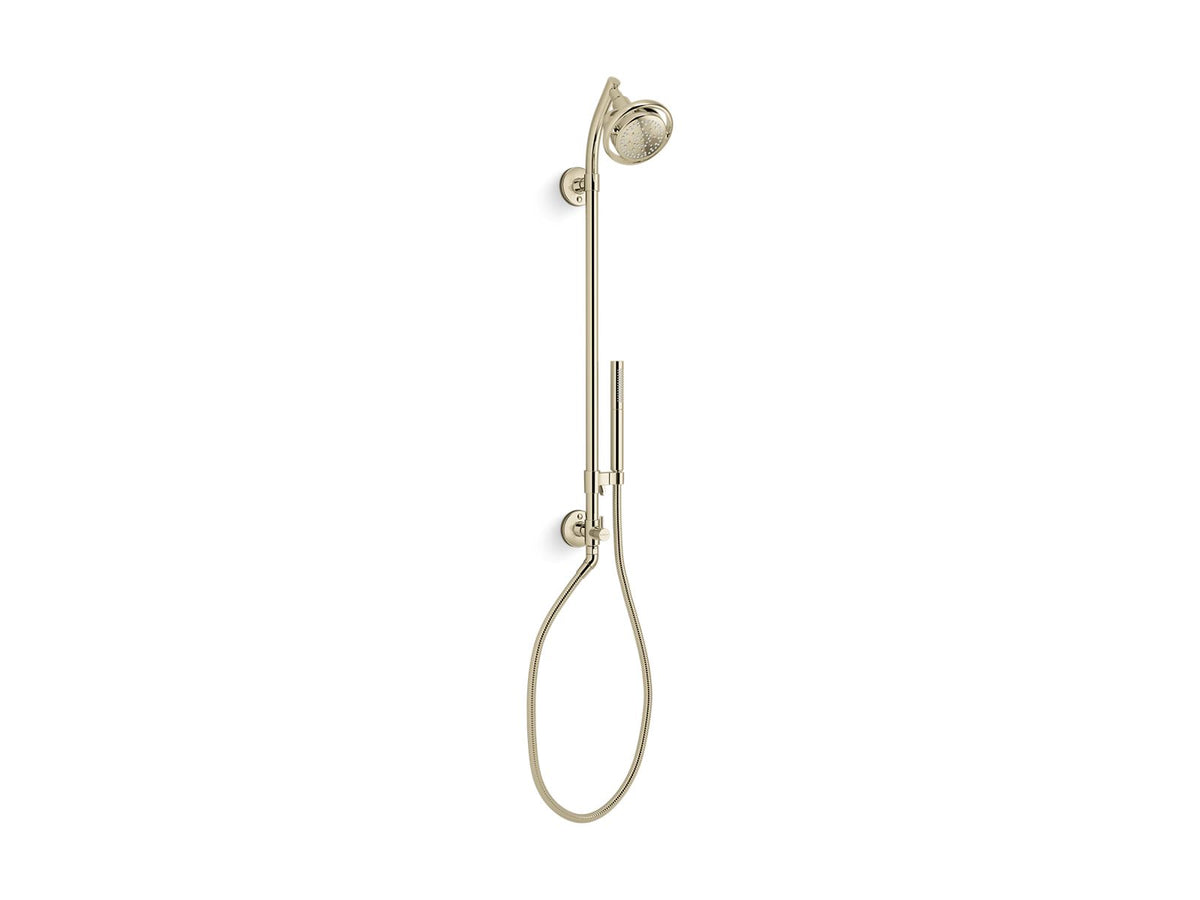

Showerhead, handshower and shower hose are sold separately. Valve trim is not included. Any showerhead, handshower, hose or valve trim shown in photographs or specification drawings is illustrative and is not included with this column.
Includes an adapter for most installations; additional kits may be required and are sold separately. Use deep roughing-in kit 1194630 for an elbow-to-finished-wall distance of 2-7/8 to 4 inches, or shallow kit 1187917 for less than 1-3/8 inches. Large escutcheon/mounting collar kit 1194302 is needed for a supply connection hole over 1-1/4 and up to 2-1/4 inches. Check the installation guide for the exact site requirements.
The specification drawing calls for a minimum 72-inch supply height above the floor, with 75 inches recommended, and at least 7-3/8 inches above the supply connection. Install according to the manufacturer’s instructions.
Special order: Confirm supplier availability and lead time with our showroom at 714-833-5375. Available to order does not confirm warehouse stock.
Official Kohler English specification sheet
