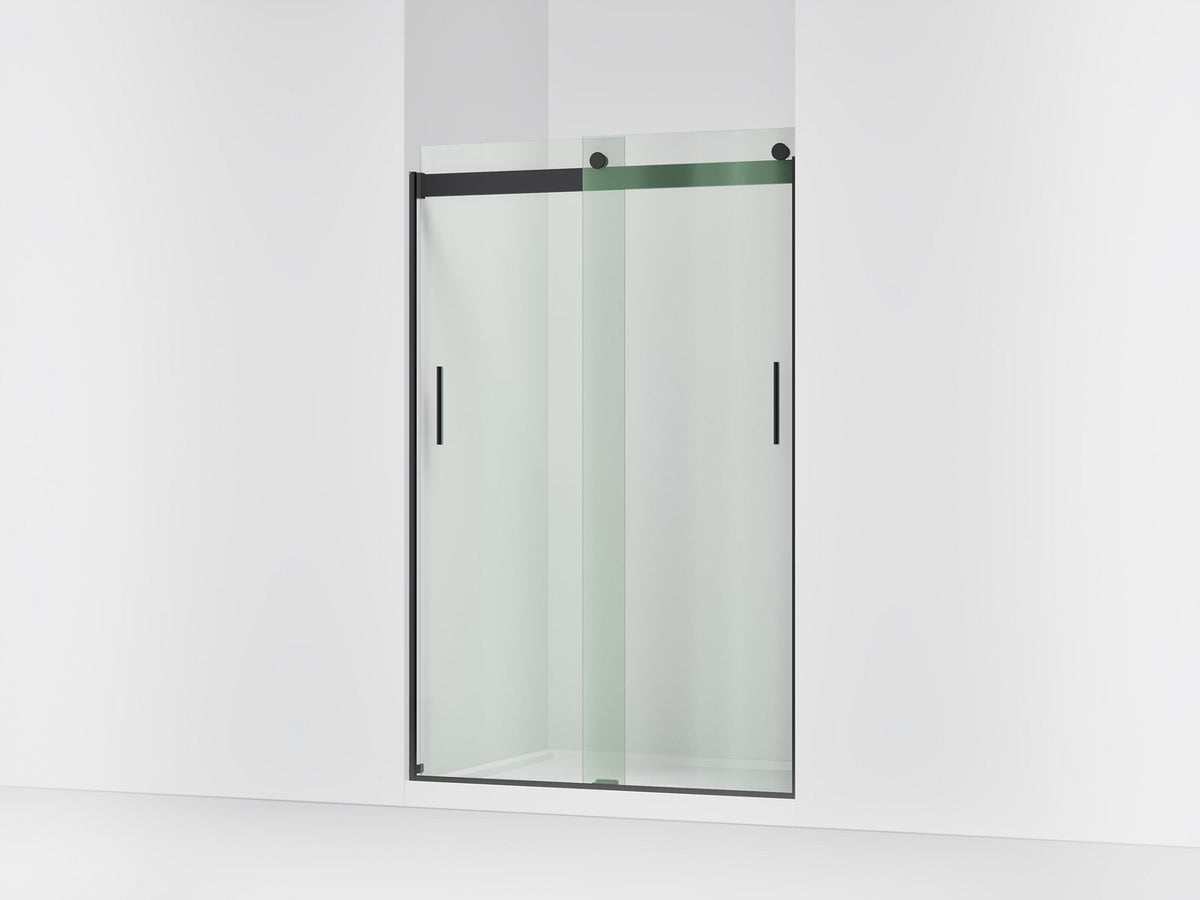

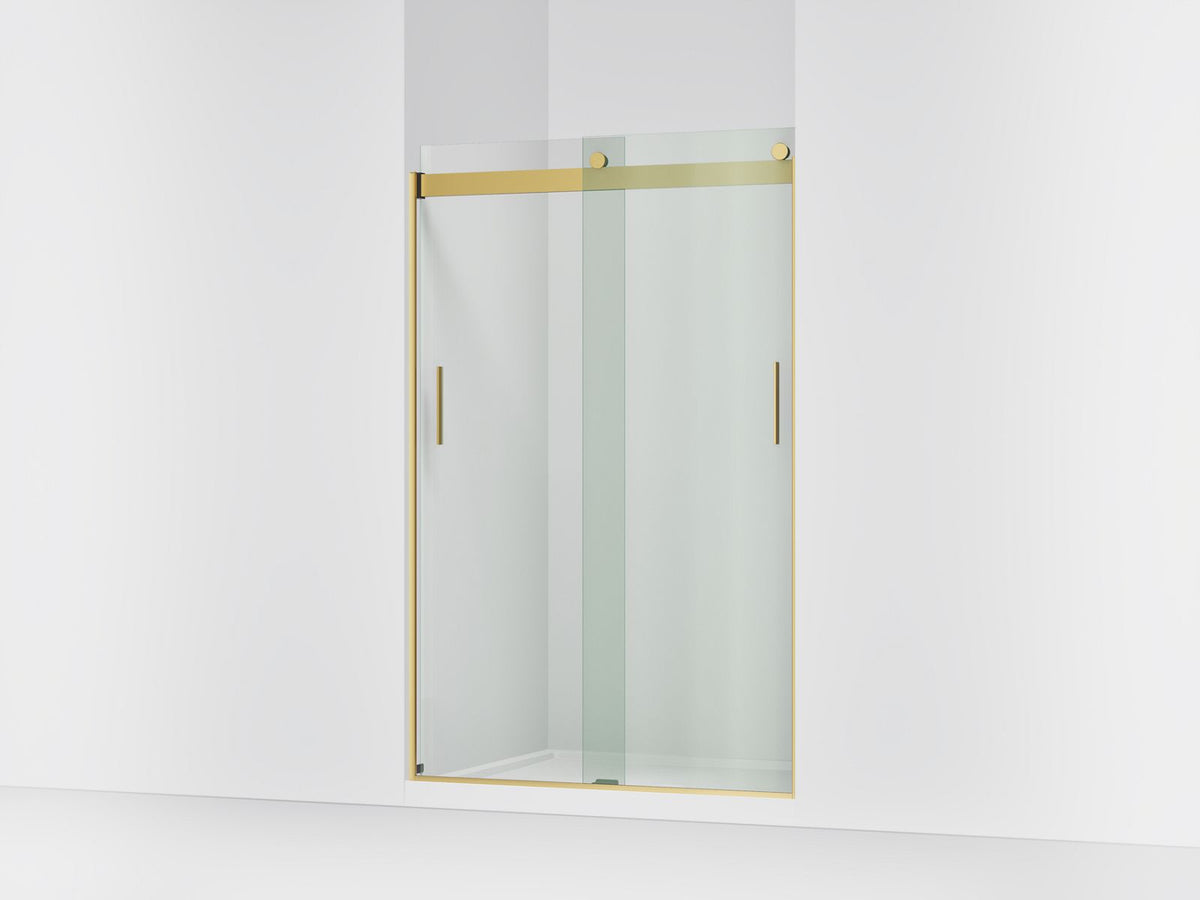

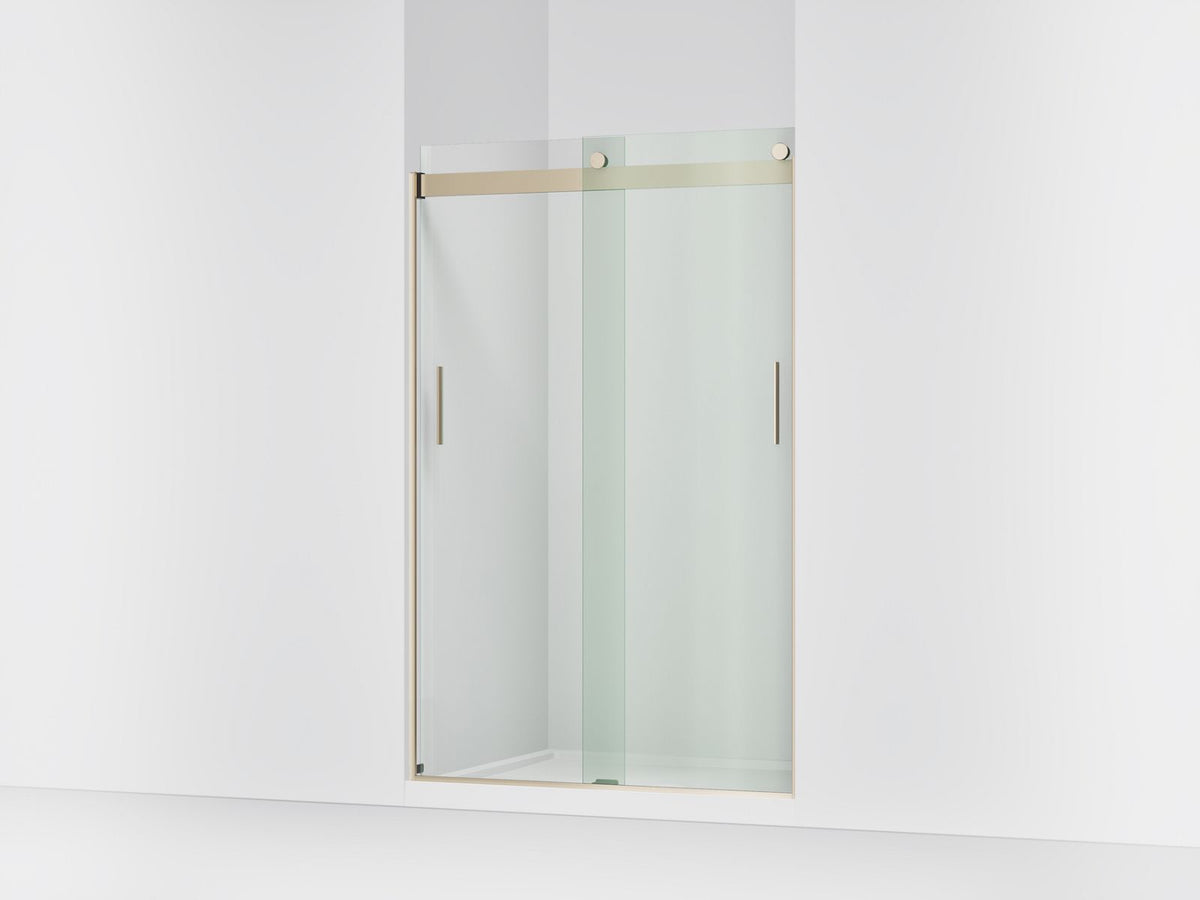

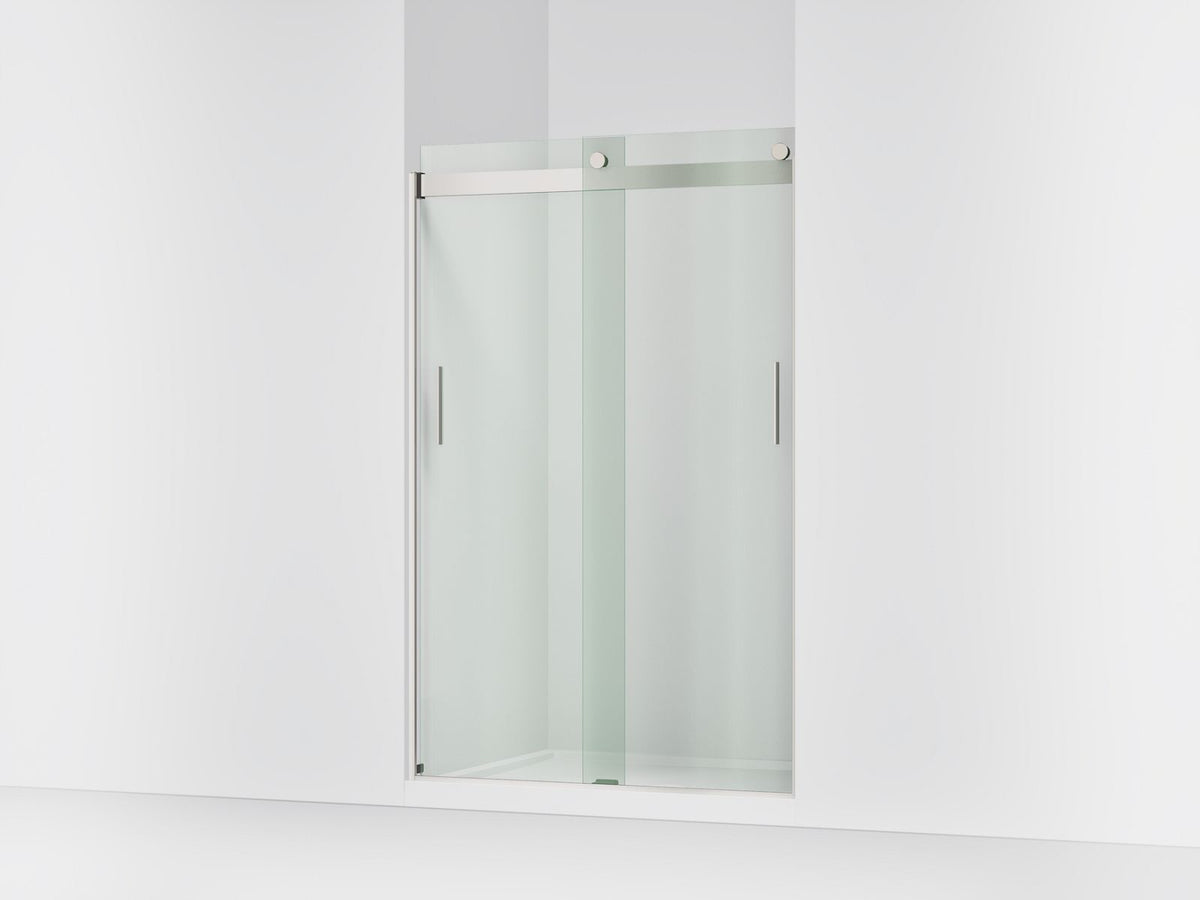

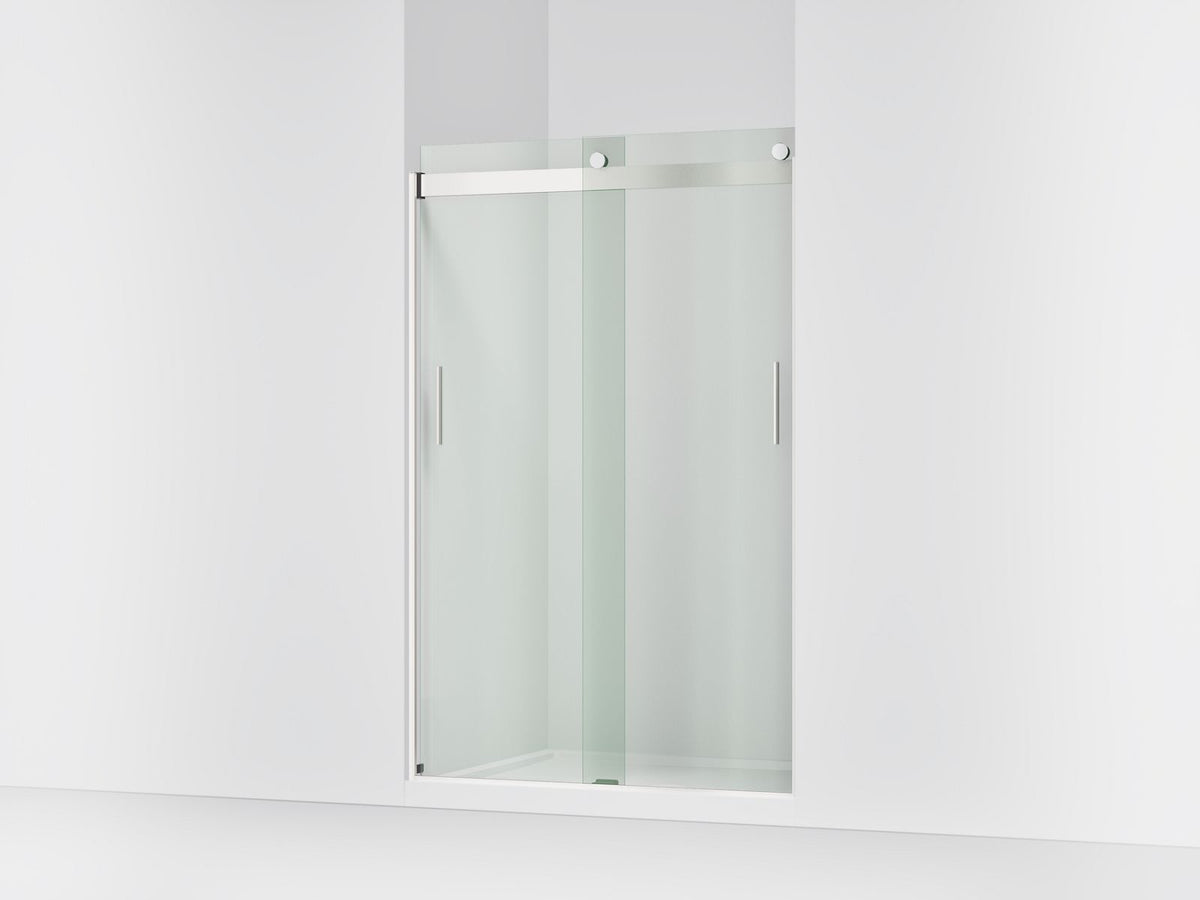

Levity bypass shower door fits openings 44-11/16 to 47-5/8 inches wide. Nominal height is 74 inches; the specification drawing shows 73-5/8 inches overall. Frameless 1/4-inch Crystal Clear tempered glass has CleanCoat+ coating, vertical blade handles and a cushioned center guide.
Requires at least 76-1/2 inches of vertical opening for installation. Minimum flat ledge is 2-1/2 inches and minimum flat wall surface is 3-1/2 inches; maximum base-to-wall radius is 1/2 inch. Drawing head clearance is 67-9/16 inches and walkthrough ranges from 18-1/16 to 21-1/16 inches.
Roller adjustment accommodates out-of-plumb walls. Narrow wall jambs may not cover holes from an existing door. Not for hospitality use. Confirm finished dimensions against the linked specification and installation instructions.
California Proposition65 warning: Cancer and Reproductive Harm.
Special order: Confirm supplier availability and lead time with our showroom at 714-833-5375. Available to order does not confirm warehouse stock.
Official Kohler English specification sheet
