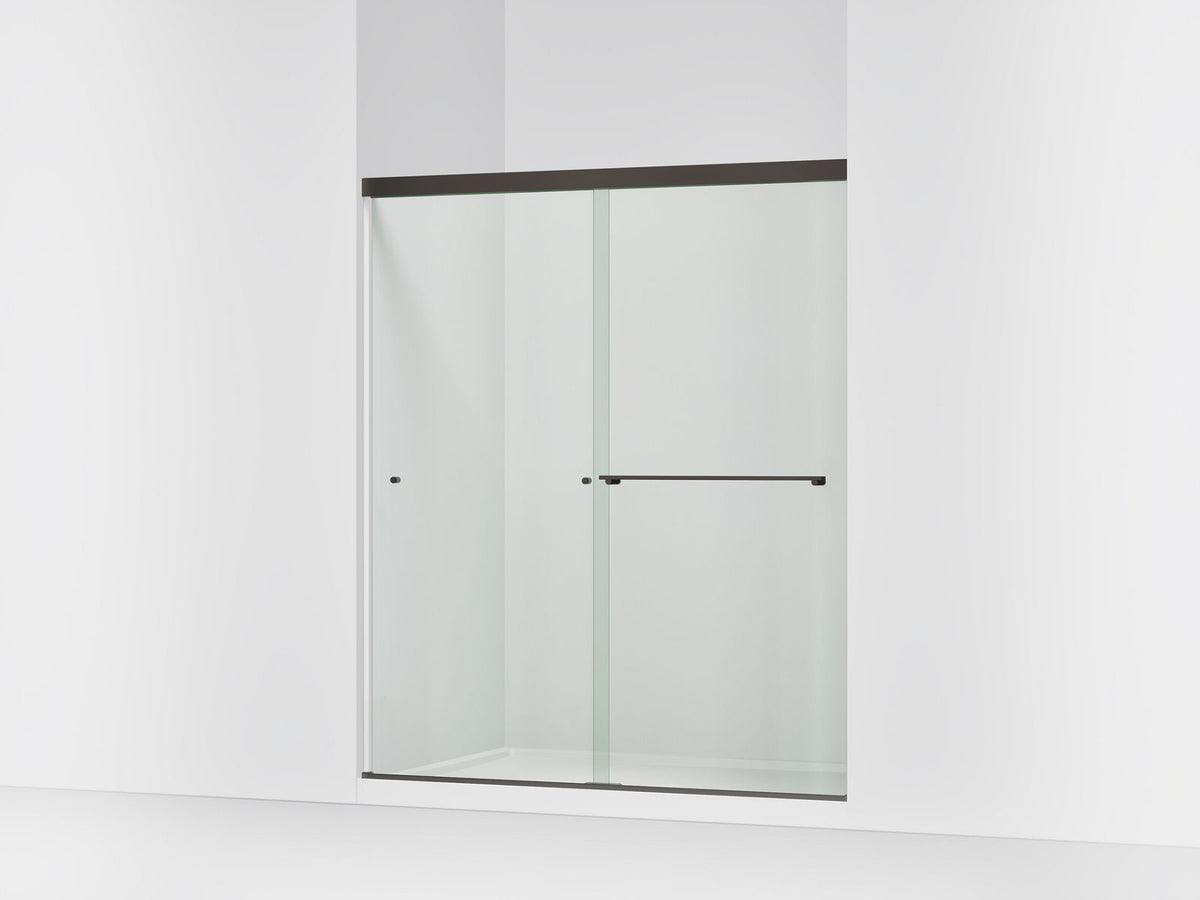

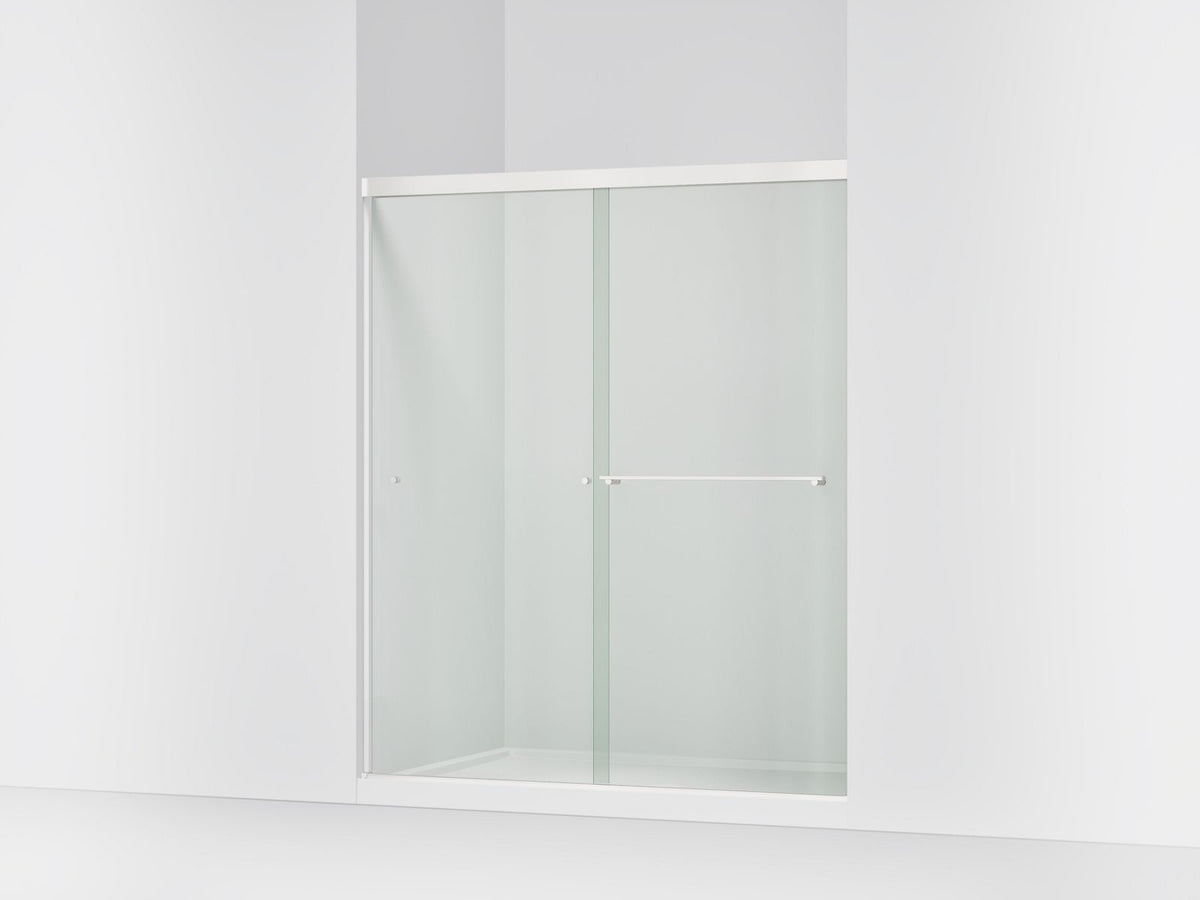

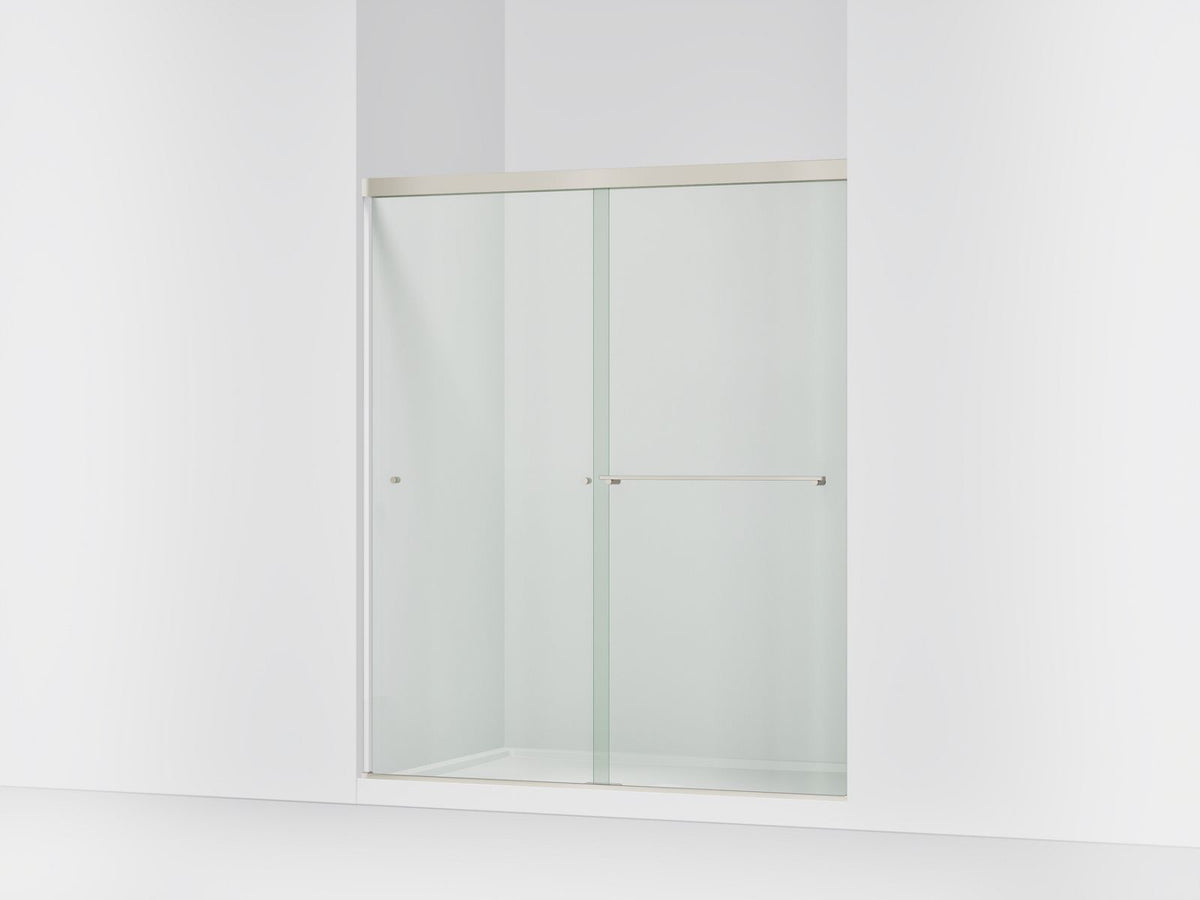

Kohler Revel Bypass Shower Door with Crystal Clear Glass | K-707201-L

Revel K-707201-L bypass shower door uses 5/16-inch Crystal Clear tempered glass with CleanCoat+ coating. Includes a center-guided sliding mechanism, low bottom track and an exterior towel bar with knob.

Fits openings 55-5/8 to 59-5/8 inches wide. Nominal height is 70 inches; the specification drawing gives 69-15/16 inches overall and 67-11/16 inches head clearance. Allow at least 72-1/2 inches of vertical opening for installation.

Requires a minimum flat ledge and flat wall surface of 2-1/2 inches each, and maximum base-to-wall radius of 3/8 inch. Clear plastic wall jambs may not cover existing door holes. Residential use only, not hospitality; follow Kohler installation instructions.

California Proposition65 warning: Cancer and Reproductive Harm.

Special order: Confirm supplier availability and lead time with our showroom at 714-833-5375. Available to order does not confirm warehouse stock.

Official Kohler English specification sheet
