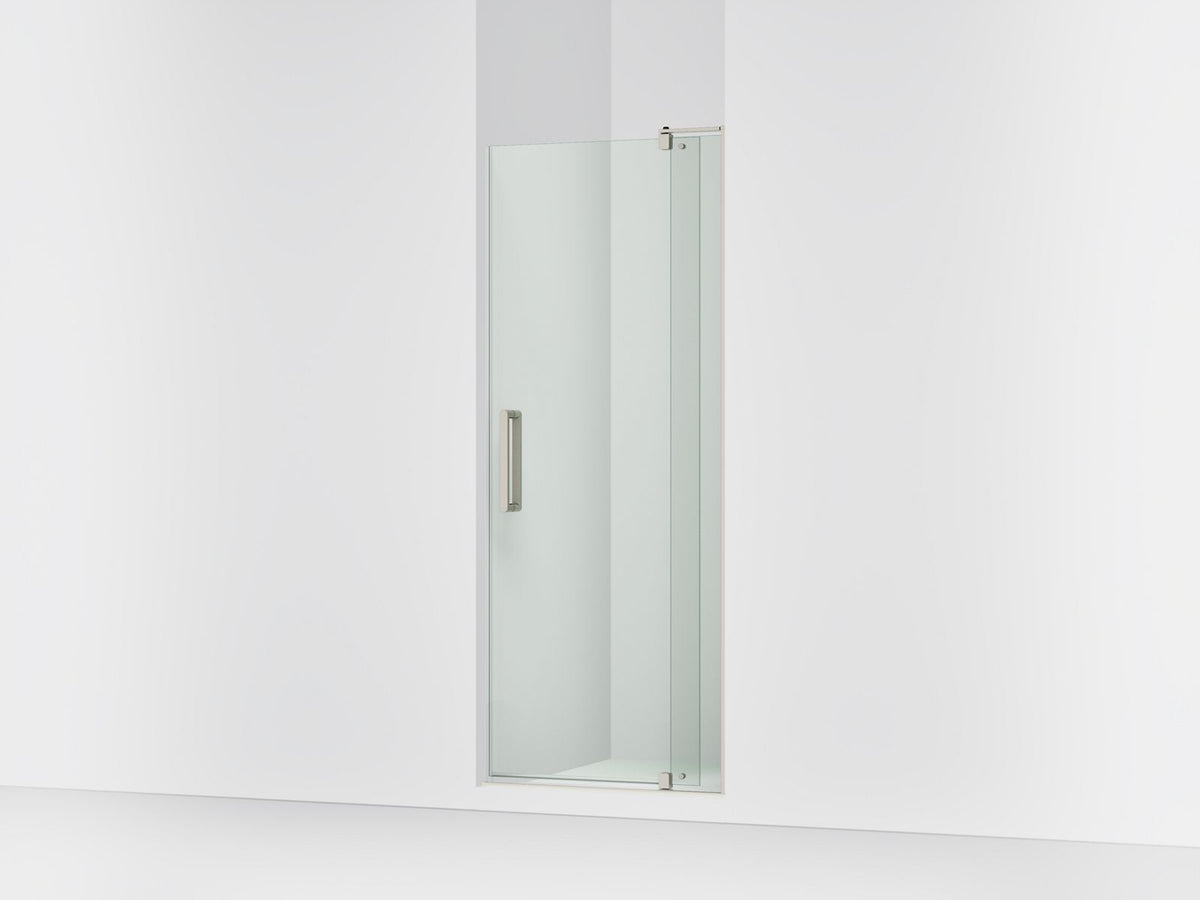

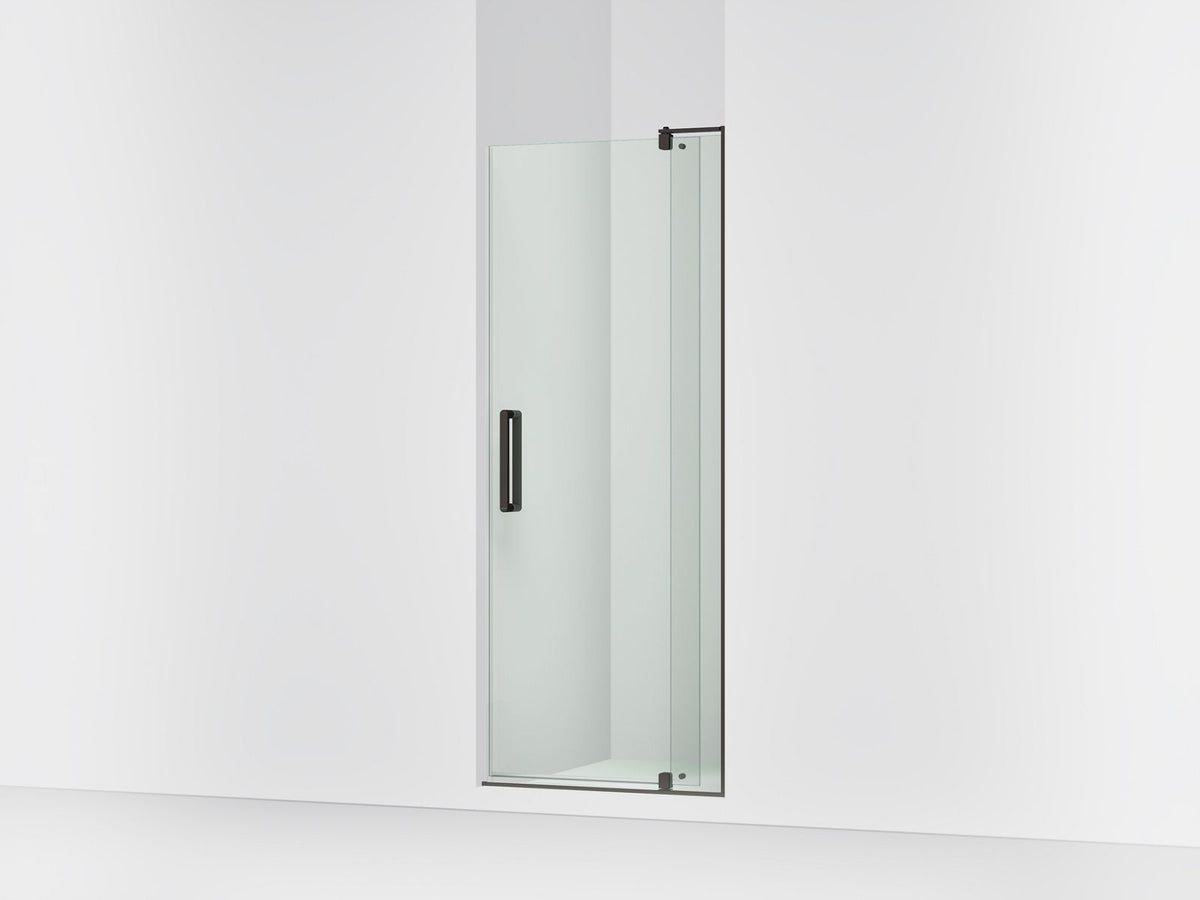

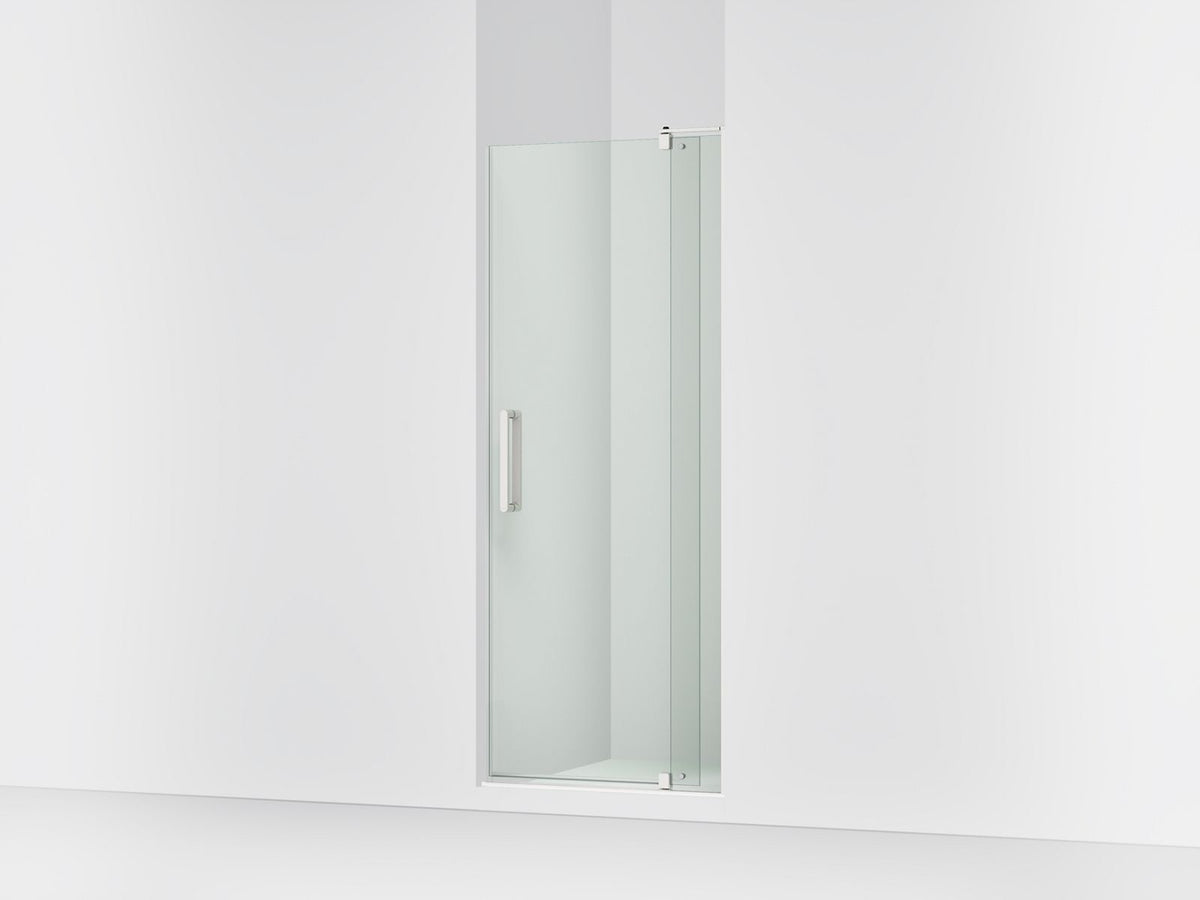

Kohler Revel 27-5/16–31-1/8-inch Clear Glass Pivot Shower Door | K-707506-L

Revel K-707506-L is a pivot shower door for openings 27-5/16 to 31-1/8 inches wide and 74 inches high. It uses frameless 5/16-inch-thick Crystal Clear tempered glass, a vertical handle and a self-closing mechanism.

The 5/8-inch threshold provides a low entry. CleanCoat+ glass coating helps repel water and residue. The door can open to the left or right, with out-of-plumb adjustment for installation.

Allow a minimum vertical opening of 78-1/2 inches for installation clearance. The minimum flat ledge and wall areas are each 2-1/4 inches; maximum base-to-wall radius is 3/8 inch.

The clear plastic strike jamb may not cover holes left by an older door. Plastic shower modules or drywall require additional support behind the wall. For residential use only; not for hospitality. Follow Kohler's installation instructions.

California Proposition65 warning: Cancer and Reproductive Harm.

Special order: Confirm supplier availability and lead time with our showroom at 714-833-5375. Available to order does not confirm warehouse stock.

Official Kohler English specification sheet
