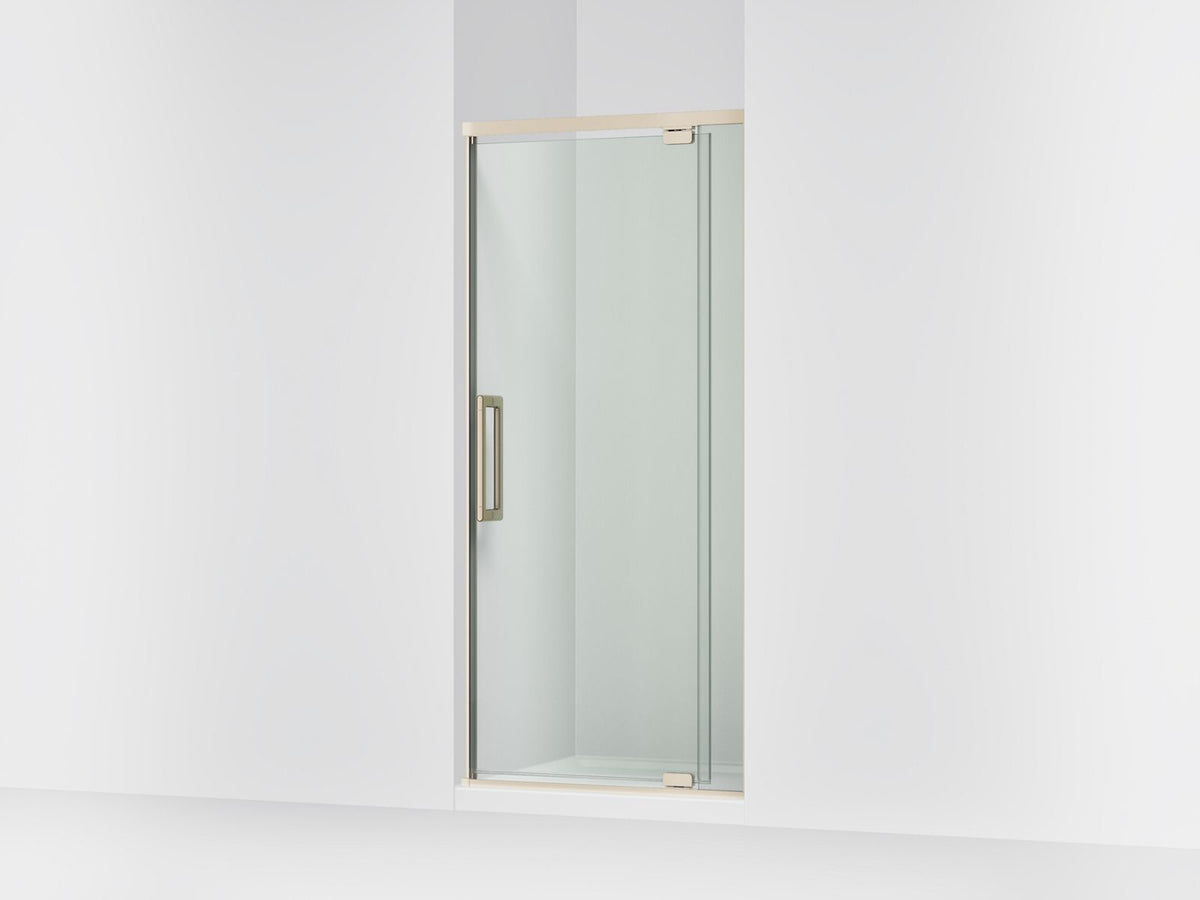

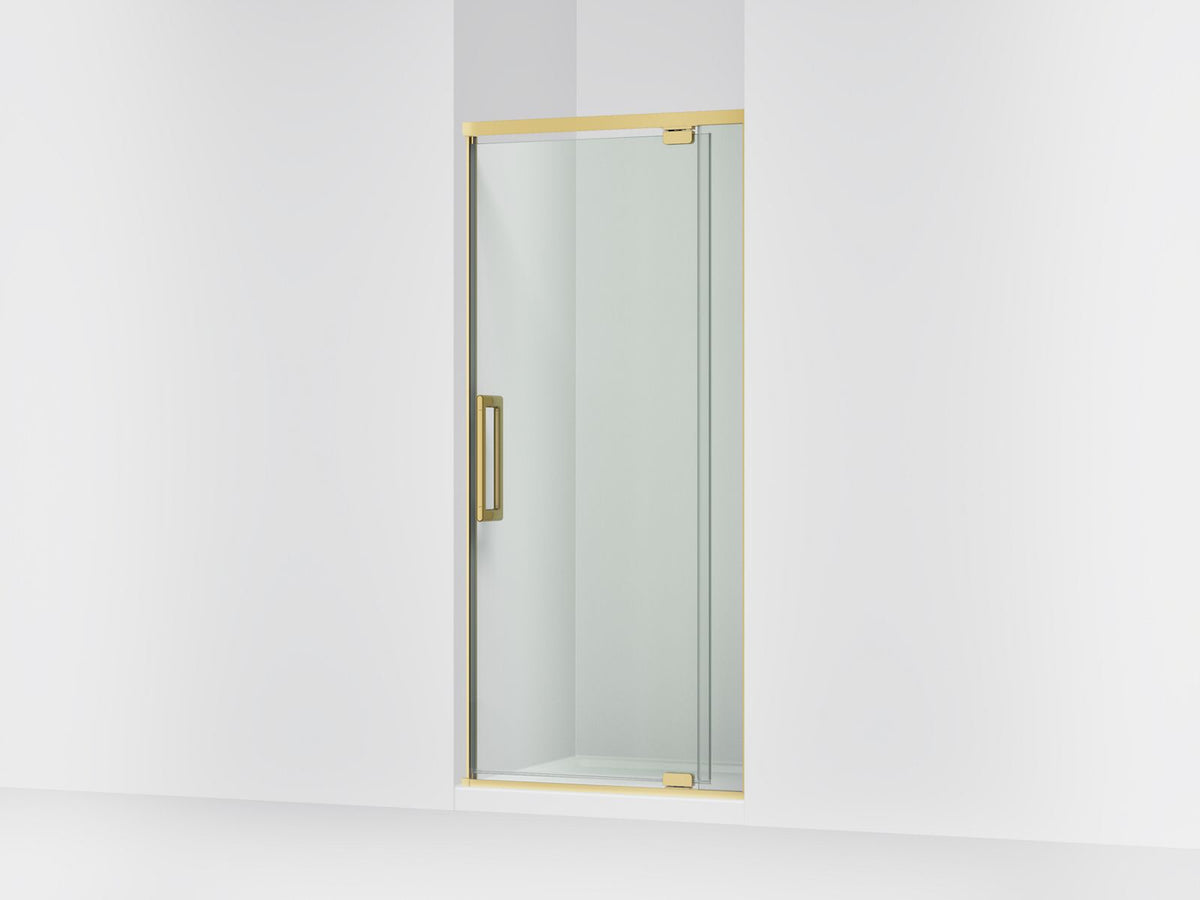

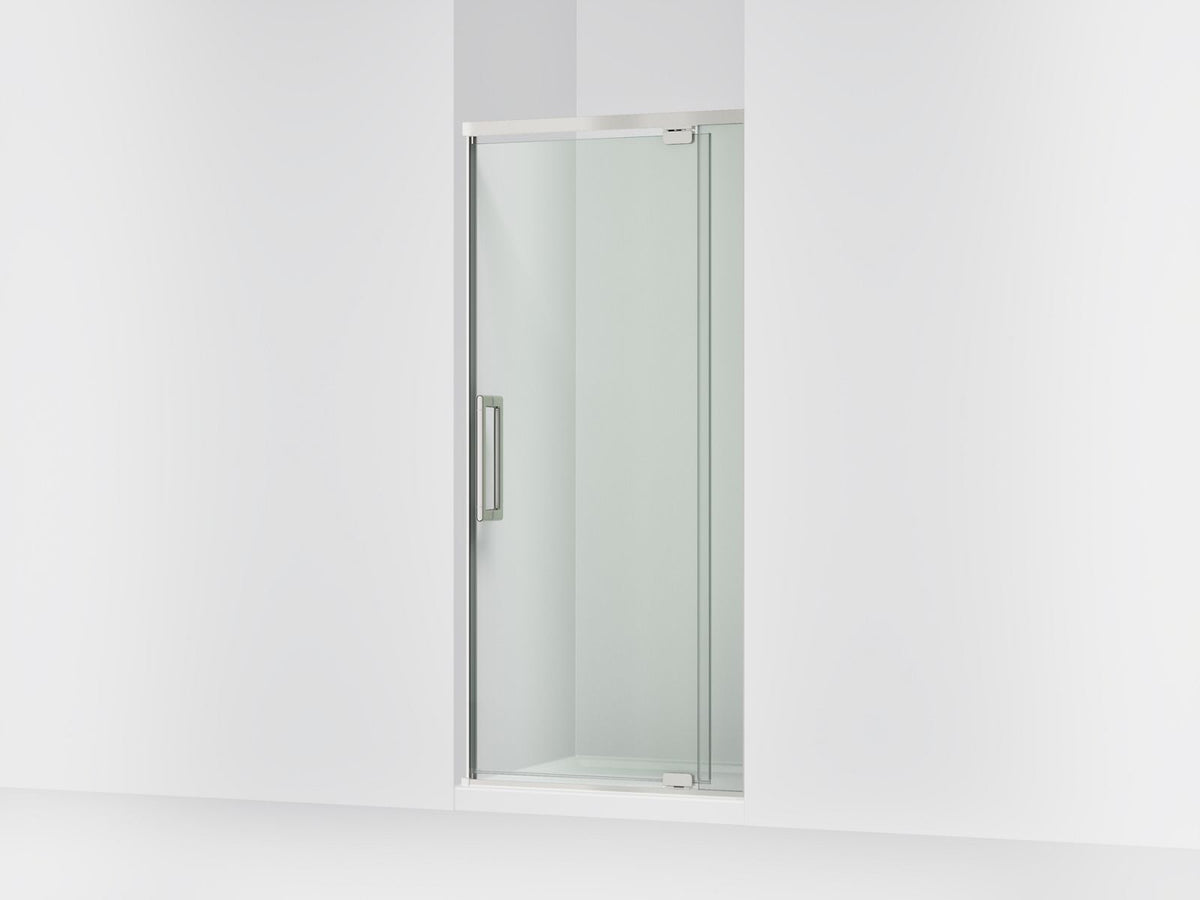

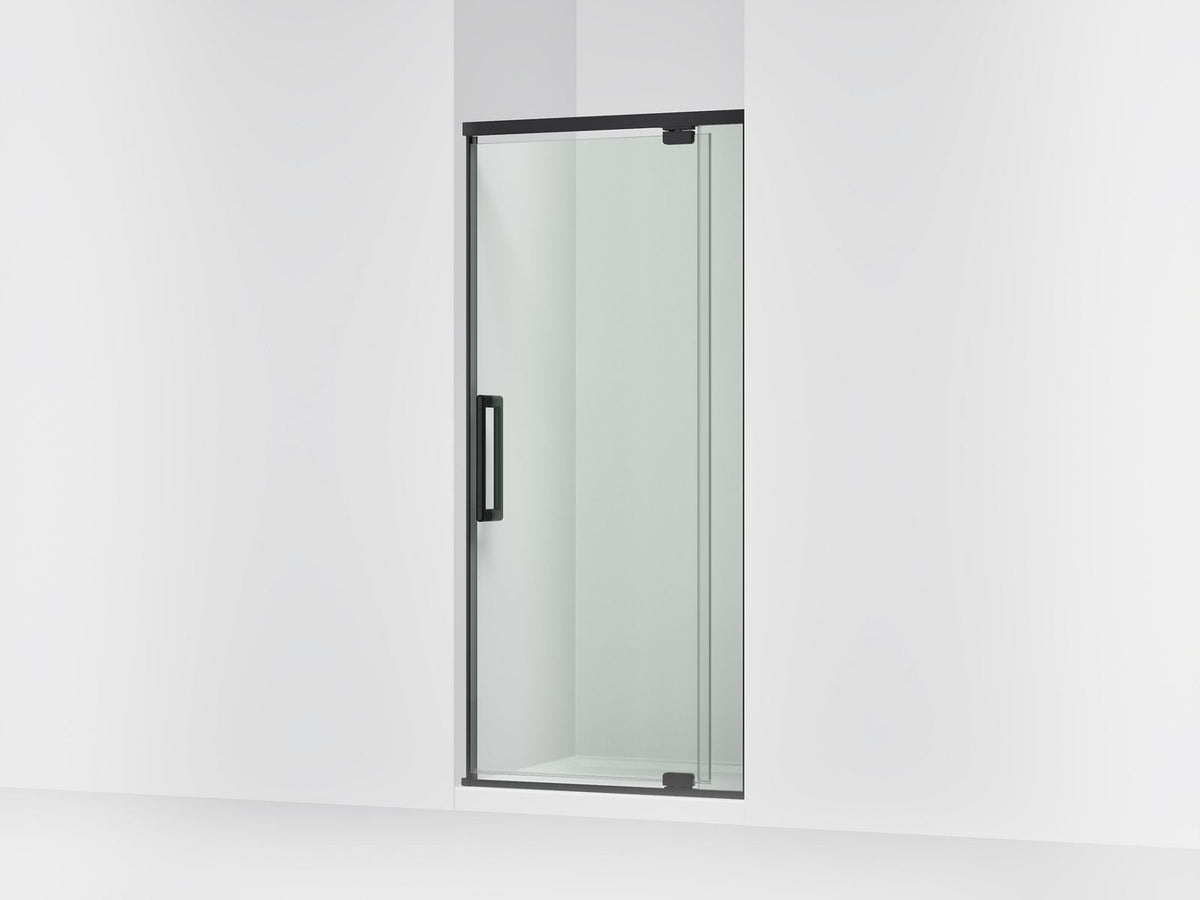

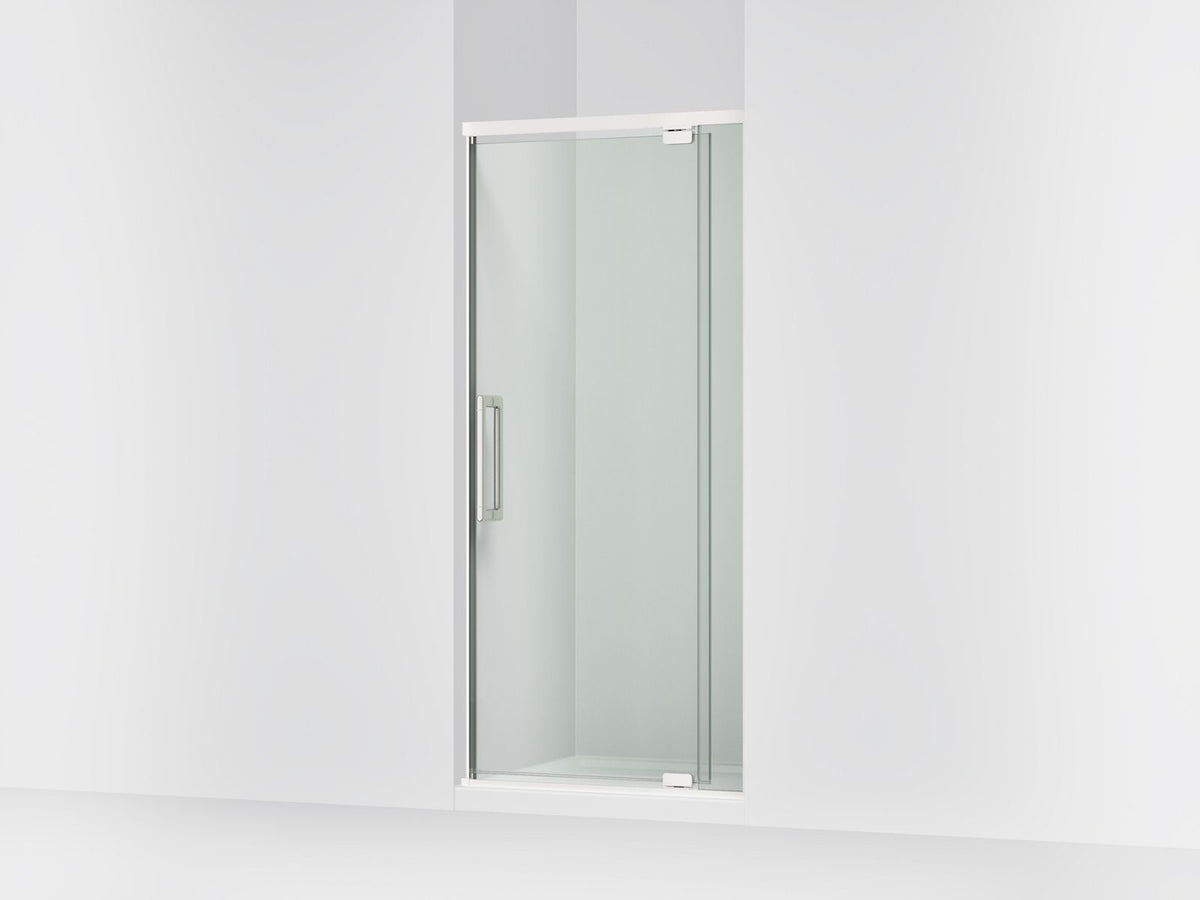

Frameless pivot shower door with one moving panel and one stationary panel, 5/16-inch Crystal Clear tempered glass, stainless steel hinges, back-to-back vertical handles, CleanCoat+ coating and a SealNetik magnetic seal.
Fits openings 32 to 36 inches wide; nominal height 76 inches with 74-5/16-inch minimum head clearance. Requires at least 76-3/4 inches of vertical opening for installation.
Installs to open left or right with 4 inches of width adjustment and 3/4-inch out-of-plumb adjustment on each side. Requires a minimum 2-1/2-inch flat shower ledge and wall surface; maximum base-to-wall radius is 1/2 inch.
Official drawing identifies a 21–25-inch walk-through opening. Review the full installation drawing and clearances before ordering.
California Proposition65 warning: Cancer and Reproductive Harm.
Special order: Confirm supplier availability and lead time with our showroom at 714-833-5375. Available to order does not confirm warehouse stock.
Official Kohler English specification sheet
