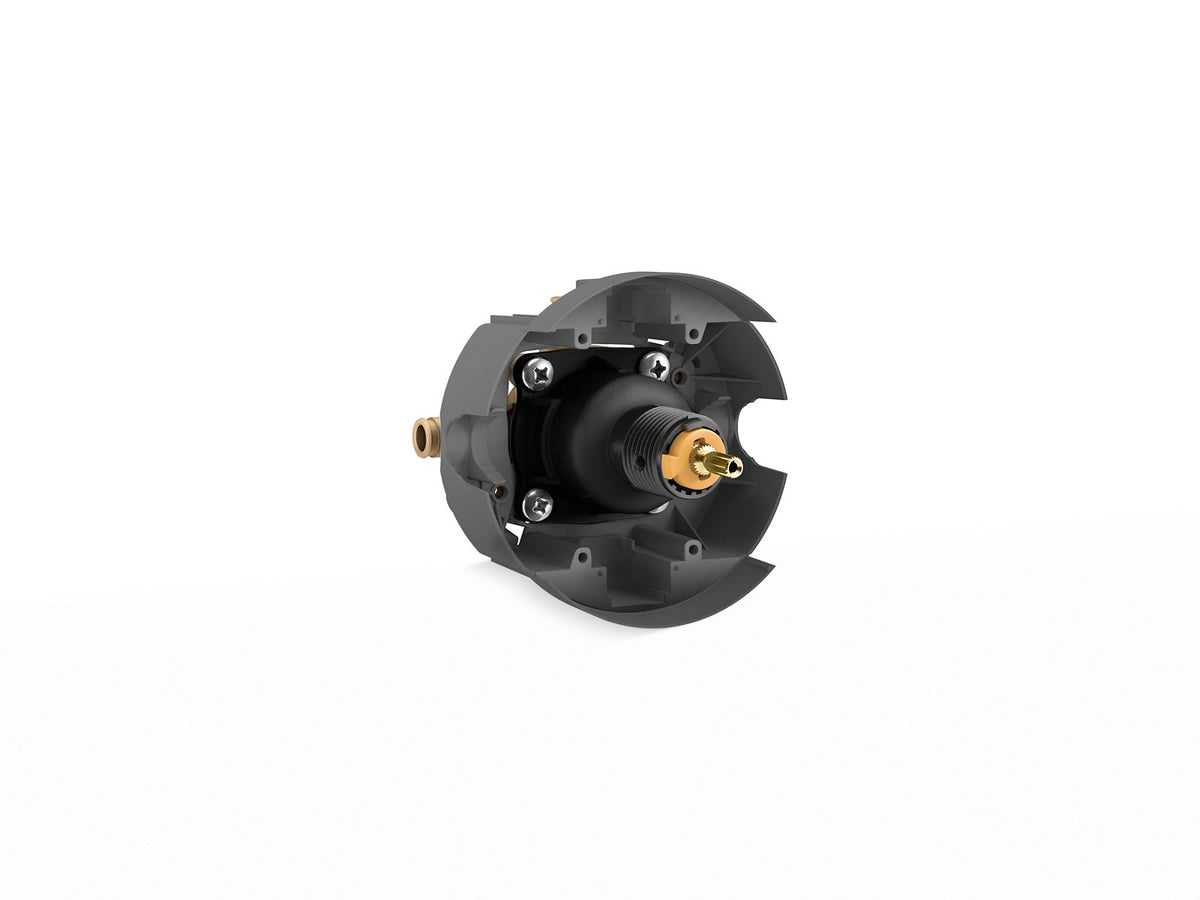

Kohler Rite-Temp® Pressure-balancing valve body and cartridge kit

Pressure-balancing valve body and cartridge kit

Model: K-8304-UXSH

• Includes valve body, pressure balance cartridge, rough-in guide, and mudguard
• Single lever design cycles from off through cold to hot
• One-piece cartridge design simplifies installation and maintenance
• 1/2" PEX Expansion (F1960 style) inlets
• 5.0 gpm (18.9 lpm) maximum flow rate at 45 psi (3.1 bar)
• Pressure-balancing diaphragm technology maintains outlet temperature within +/-3°F during water pressure fluctuations
• Requires valve trim to complete installation (sold separately)
• Installed valve rough-in can be flushed and pressure-tested to 150 psi max (air or water) without cartridge by using included test cap
• Rough-in guide designed for both standard and thin wall installations
• Cartridge is reversible for installations where hot and cold supplies are reversed
• Valve body features integral mounting locations and symmetrical valve inlets to simplify installation
• Designed for use in standard, back-to-back, and thin wall installations
• Forged dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions

Official Kohler specification sheet (English)
